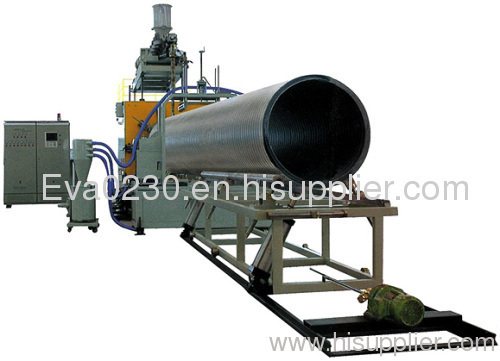

HDPE Large Diameter Pipe Extrusion Line adopts our own advanced technology,which can be equipped with another extruder used for extruding the mark line.This production line mainly consists of RM series extruder, die, water cooling tank, hauling-off unit, cutting machine, pipe clipping unit.
This line has characteristics of low energy consumption and noisy, high output, smooth operation, and long useful-life. And the design can ensure the stability of diameter and roundness when producing the pipe with thick wall.HDPE Large Caliber Pipe Extrusion Line interest customers more and more with its own special features.
Application: HDPE Large Diameter Water Drainage Pipe Production Line nowdays used in many fields,i.e.,single layer pipe,multi-layer composite pipe,agriculture irrigation pipe and cable protection pipe.
The pipe produced by the PE large dia. water drainage pipe line has been recognized as a substitute for cement pipes and cast iron pipes because it possesses superior advantages in water drainage and water sewage conduit. It has the excellent features of good flexility, corrosion resistance, light weight, aging resistance and so on. It is becoming as a replacement of cement pipe, cast iron pipe and steel pipe, which is widely used in the fields of municipal water supply, city gas delivery and so on.
Diameter:Φ160~Φ710mmHDPE

Model	SJG-Z65/30	SJG-Z90/30	SJG-Z120/30	SJG-Z150/30
Production pipe range(mm)	φ12-φ63	φ50-φ160	φ110-φ400	φ200-φ800
Screw diameter(mm)	φ65	φ90	φ120	φ150
Screw length(L/D)	30:1	30:1	30:1	30:1
Screw speed(r.min)	10~90r/min	10~90r/min	10~72r/min	10~72r/min
Production capacity(kg.h)	100~150kg/h	200-250kg/h	300~350kg/h	500~600kg/h
Traction speed(m.min)	0~15m	0.5~11m	0.2~4m	0.1~1.5m
Cutting form	No debris cutting	No debris cutting	Planetary cutting	Planetary cutting
